The MultiSound 30W Solar Panel is the ideal solution to ensure a continuous and autonomous power supply for MultiSound BS-20L acoustic repellers when powered by an external 12V battery. This photovoltaic system is designed to create a fixed, professional and fully autonomous installation, perfect for the permanent protection of agricultural, industrial or residential areas. It keeps the battery fully charged at all times, eliminating the need for manual supervision.

Autonomy and solar efficiency

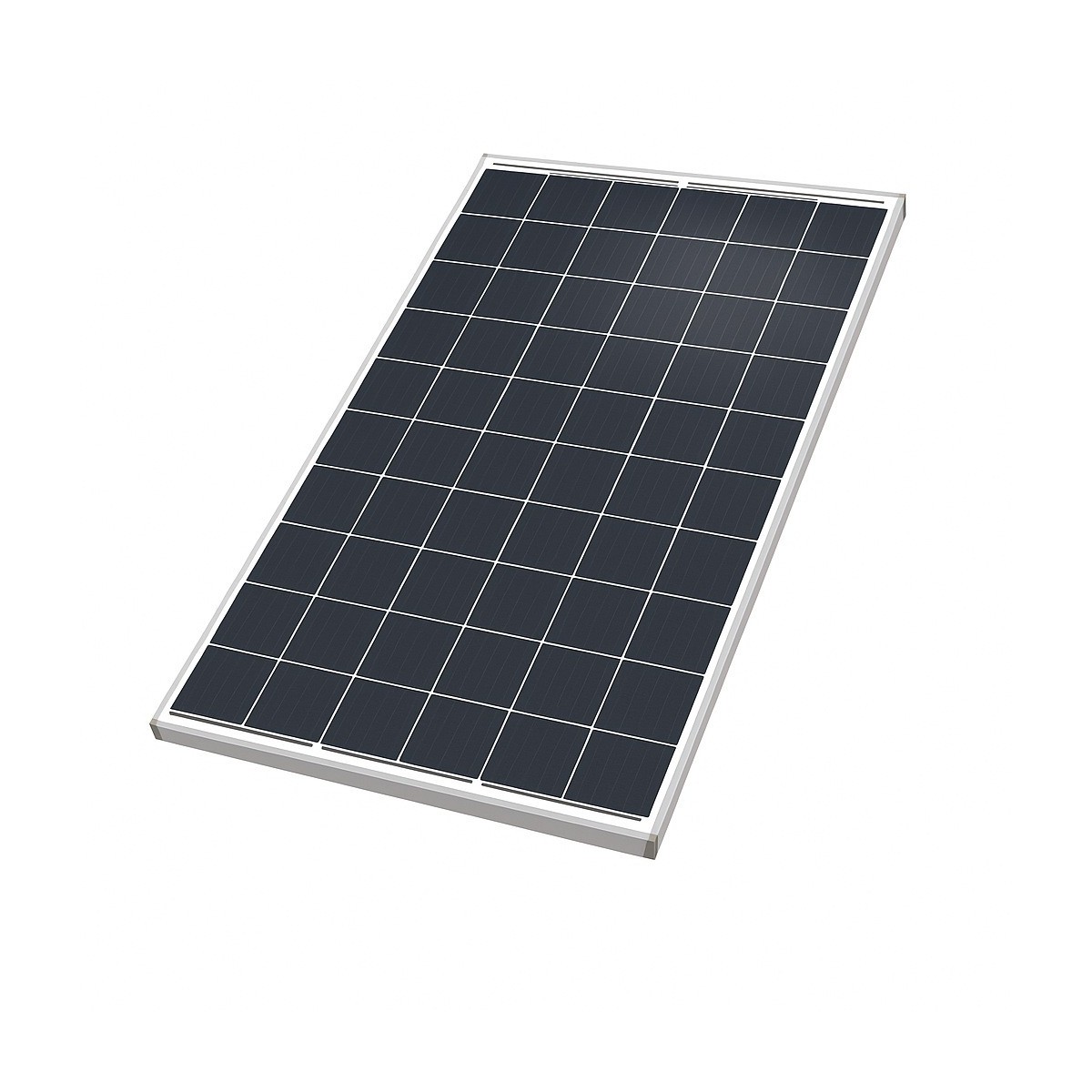

The 30 W polycrystalline solar panel with a nominal voltage of 12 V offers excellent performance even under indirect sunlight. Its high conversion efficiency (17.10%) ensures the battery remains charged and the repeller powered, providing a reliable and sustainable energy solution for bird and wildlife control all year round.

Durable and weather-resistant design

Built with a corrosion-resistant aluminium frame and a tempered solar glass surface, the solar panel is designed to withstand extreme weather conditions such as rain, hail or snow. With its IP66 protection rating, it guarantees a long service life and safe operation even in demanding outdoor environments.

Simple and versatile installation

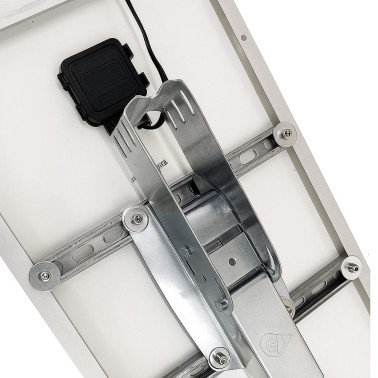

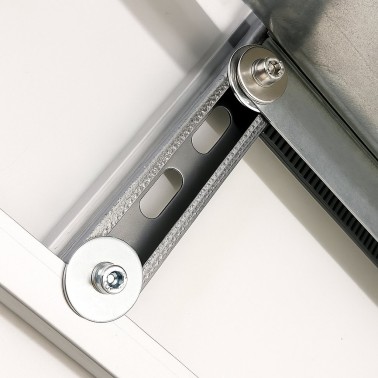

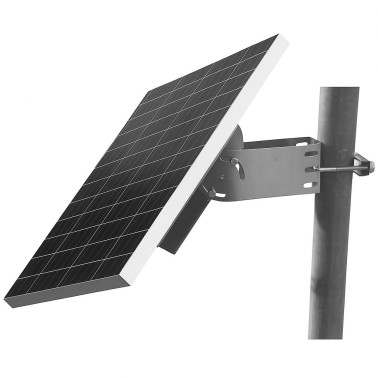

The kit includes a pole-mounting system made of galvanized steel, compatible with poles from 25 to 60 mm in diameter. Adjustable brackets and pre-drilled mounting holes allow you to easily set the optimal tilt angle for maximum sunlight exposure. Installation requires no technical skills — simply mount the bracket, connect the cables, and the system is ready to operate.

Plug & Play connectivity

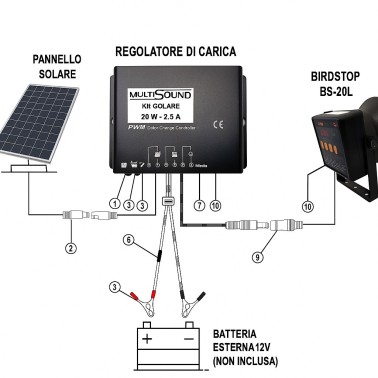

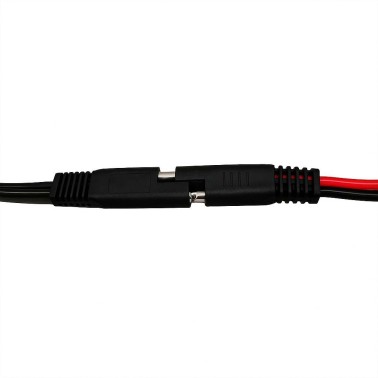

The kit includes all necessary cables and connectors for immediate use. The panel features a 5.5 m cable with male/female connectors, allowing direct connection to the battery and charge controller without additional accessories. The system ensures continuous and autonomous operation of your repeller.

Certified quality and safety

Manufactured in compliance with ISO 9001, TUV IEC 61215 and IEC 61730 standards, the MultiSound Solar Panel guarantees consistent performance, high reliability and complete electrical safety.

Kit components

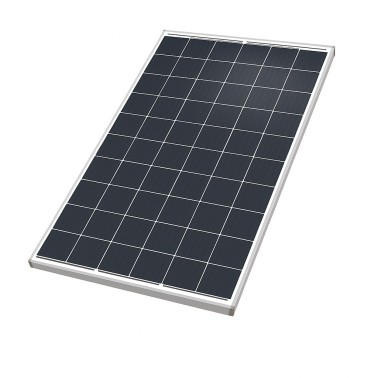

• 30 W polycrystalline solar panel with aluminium frame and tempered glass surface.
• Mounting system made of galvanized steel, suitable for poles 25–60 mm in diameter.

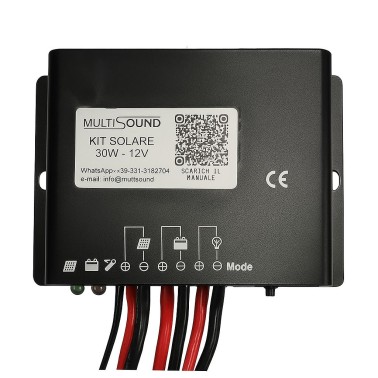

• 12 V / 2.5 A charge controller with IP67 protection, integrated fuse and complete wiring.

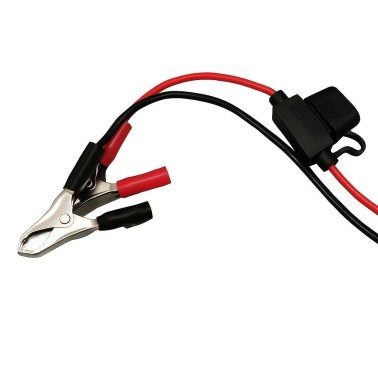

• Cables and connectors for connecting the panel, battery and acoustic repeller.

Technical specifications

• Maximum power: 30 W
• Nominal voltage: 12 V DC
• Nominal output current: 2.5 A (max. 3 A, fuse-protected)
• Operating temperature range: –40 °C to +85 °C
• Protection: IP67 (controller) / IP66 (panel)
• Panel dimensions: 64.5 × 34.5 × 2.5 cm
• Total weight: 2.5 kg (panel) + 3 kg (mounting system)
• Materials: aluminium, tempered glass, galvanized steel
• Cables: 5.5 m (panel → controller) / 1 m (battery) / 5 m (output)

Recommended installation

• Mount the panel at an angle of approximately 30–35° relative to the ground.
• Avoid shaded areas: the panel should receive maximum direct sunlight exposure.
• Install the charge controller in a protected, dry location near the battery.
• Regularly check that the controller’s charging LED remains lit.

With the MultiSound 30W Solar Panel, your BS-20L acoustic repeller will operate fully autonomously when powered by battery — renewable, safe and maintenance-free.
